Product Introduction

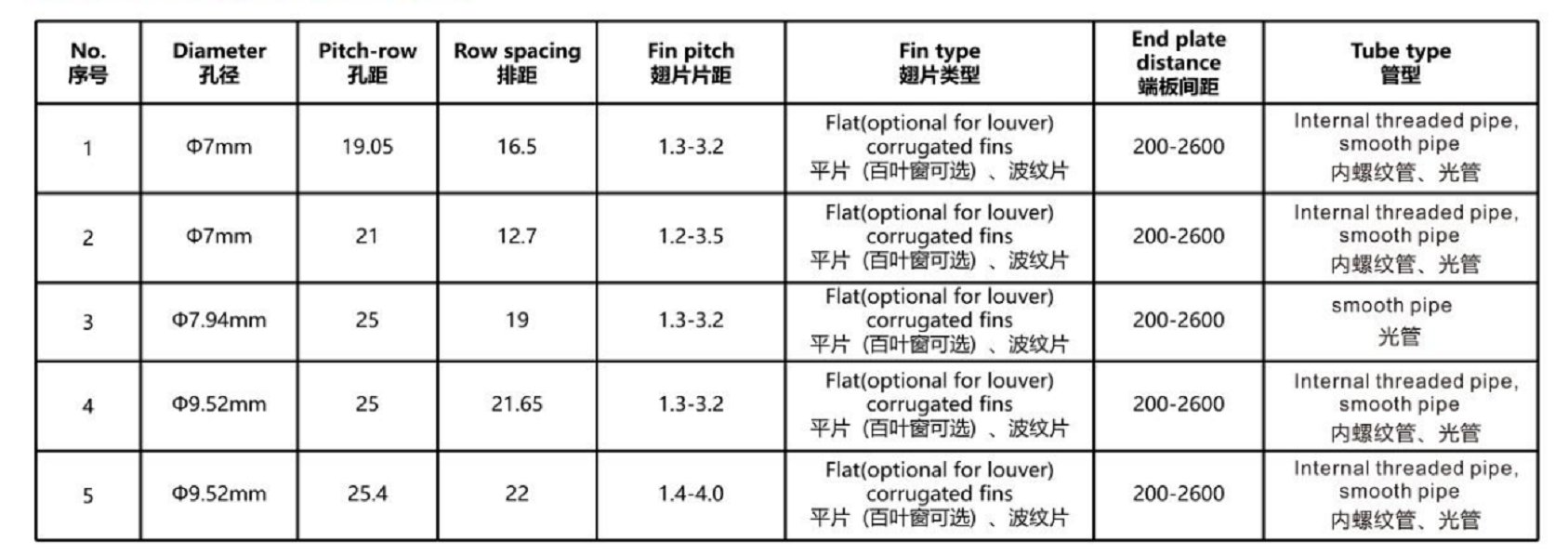

Aluminum round tube aluminum fin heat exchanger-Design Parameters

1.Internally threaded tubes enhance heat transfer

2.Increase the heat transfer area inside the tube. The internally threaded tube can increase the area by 20%~25% compared to the smooth tube with the same outer diameter;
3.The internal thread produces spiral flow, increases the speed of the liquid film on the tube wall, and increases the mixing degree of the two-phase fluid
4.During evaporation, the thread processing surface improves the gas core production conditions, increases the number of gasification cores,and enhances boiling;
5.During condensation, the internal teeth of the internal thread pierce the liquid fi lm and penetrate into the gas phase area, increasing the contact area with the gas phase;

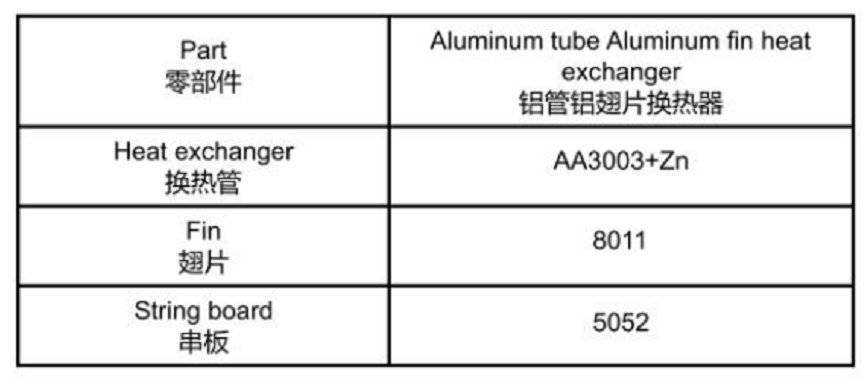

Aluminum round tube aluminum fin heat exchanger-Material Selection
