Fan box

The Fx series chassis features a sheet metal structure and is equipped with an external rotor low-noise fan. It is widely used in air conditioning systems in industries such as industrial and mining enterprises, civil buildings, commercial and entertainment venues, education, and healthcare for air supply, pressurization, and exhaust. It is characterized by its small size, light weight, low noise, simple operation, and convenient maintenance.

Long-range jet unit

This unit delivers air directly without ductwork, saving space, significantly reducing investment, and noticeably lowering operating costs. It delivers air over long distances, delivering cool or hot air to designated locations, simulating natural wind to create a comfortable air-conditioned environment.

Quick Link

Specifications	Airflow (m³/h)	Power (kW)	Total Pressure (Pa)
FX-01	1000	0.25	300
FX-1.5	1500	0.25	300
FX-02	2000	0.32	300
FX-2.5	2500	0.45	300
FX-03	3000	0.55	400
FX-04	4000	0.8	400
FX-05	5000	1	470
FX-06	6000	1.8	550
FX-07	7000	2.2	600
FX-08	8000	3	600
FX-10	10000	4	850
FX-12	12000	4	950
FX-15	15000	5.5	800
FX-20	20000	7.5	800

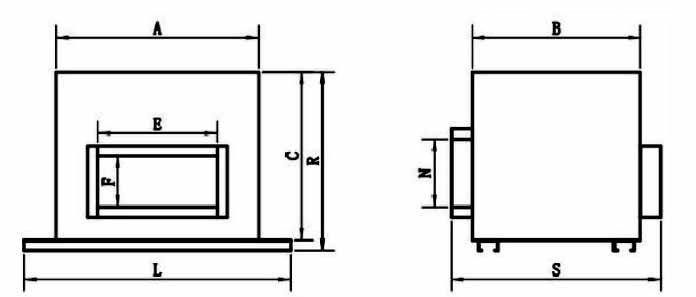

model	Box shape			air vent		return air vent		Maximum size			Lifting dimensions
	A	B	C	E	F	M	N	L	S	R	X	Y
FX-1/1.5/2/C	555	430	395	350	150	350	300	750	547	455	670	397
FX-2.5/C	605	430	395	350	150	400	300	800	547	455	720	397
FX-3/C	605	500	495	350	200	400	400	800	617	555	720	467
FX-4/C	605	500	495	400	200	400	400	800	617	555	720	467
FX-5/C	655	550	545	450	300	450	450	850	667	605	770	517
FX-6/C	705	550	545	450	300	500	450	900	667	605	820	517
FX-7/C	705	600	595	450	300	500	500	900	717	655	820	567
FX-8/C	755	600	595	500	300	550	500	950	717	655	870	567
FX-10/C	905	700	695	500	400	700	600	1100	817	755	1020	667
FX-12/C	905	800	795	600	450	700	700	1100	917	855	1020	767
FX-15/C	1005	800	795	600	500	800	700	1200	917	855	1120	767
FX-18/C	1005	800	795	700	500	800	700	1200	917	855	1120	767
FX-20/C	1105	800	795	800	500	900	700	1300	917	855	1220	767
